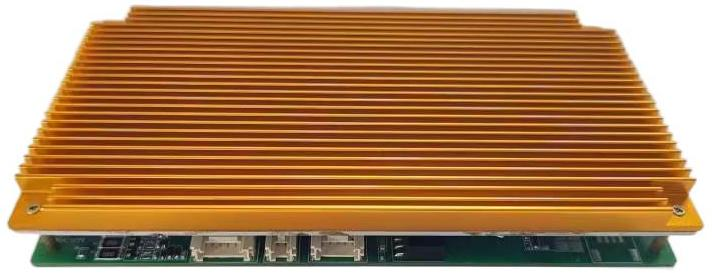

- Supports 8-24 Series Lithium Batteries: The system provides overvoltage, undervoltage, overcurrent, high temperature, low temperature, and short circuit protection and recovery for both the battery pack and individual cells. The parameters for these protections and recoveries can be modified via software.
- High Current Support: It can support a maximum current of up to 200A.
- Real-time Monitoring of Each Cell Voltage: The system is capable of monitoring the voltage of each cell string individually.
- Thermal Monitoring: It includes 3 channels for monitoring battery temperature, 1 channel for monitoring the temperature of the MOSFET (assuming “MOS” refers to “MOSFET”), and 1 channel for monitoring ambient temperature.
- Communication Capabilities: It supports RS485 communication, CAN communication, and Bluetooth functionality.
- Discharge Precharge Function: The system supports a precharge feature for discharge.
- Individual Cell Balancing: It has the capability for balancing the voltage of individual cells within the battery pack.
- GPS Function Reserved: There is a reserved feature for GPS integration.
- Real-Time Clock (RTC): The system includes an RTC function.
- Wide Application Range: It can be widely used in two-wheeled, three-wheeled electric vehicles, motorcycles, low-speed vehicles, and forklifts, among others.
